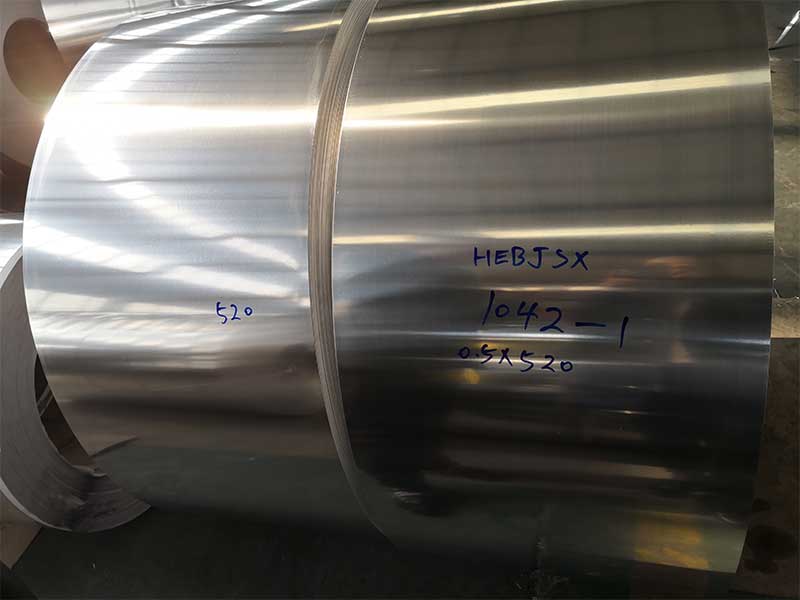

3105 ALUMINUM COIL DESCRIPTION:
3105 aluminum coil with 98% pure aluminum and slight alloy additions for strength. 0.3% of copper is added to 3105 aluminum coil, so the conductivity turns out to be 41%. For its contents and processing technologies, 3105 aluminum coil is light in weight and it has semi-smooth surface. Besides, it is not hardened by heat treatment.
3105 ALUMINUM SHEET CHEMICAL COMPOSITION:
| Elements | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others | Al | |||
| Content(max) | 0.6 | 0.70 | 0.30 | 0.3.-0.80 | 0.20-0.80 | 0.20 | 0.40 | 0.10 | 0.15 | remain | |||
3105 ALUMINUM SHEET MECHANICAL PROPERTIES:
| Material | Temper | Tensile Strength (N/mm²) | Yield Strength (N/mm²) | Elongation on 50mm | |||
| 0.5 mm | 0.8mm | 1.3mm | 2.6mm | ||||
| 3105 | 0 | 110-155 | - | 16 | 18 | 20 | 20 |
| 3105 | H12 | 130-175 | 115 | 2 | 3 | 4 | 5 |
| 3105 | H14 | 160-205 | 145 | 2 | 2 | 3 | 4 |
| 3105 | H16 | 185-230 | 170 | 1 | 1 | 2 | 3 |
| 3105 | H18 | 215 min | 190 | 1 | 1 | 1 | 2 |
3105 ALUMINUM COIL APPLICATION:
3105 aluminum coil has excellent forming properties, high corrosion resistance, good weldability and conductivity. Is widely used in kitchen utensils, food and chemical products processing and storage equipment, transport of liquid products, tank. to a variety of sheet metal processing,pressure vessels and piping, heat exchangers, rivets, welding, washing machines, cylinder, etc.
RELEVANT GRADE OF 3105 ALUMINUM COIL
Relevant grade of 1050 Aluminum Coil | |
3105 ALUMINUM COIL PACKING:
3105 aluminum coil of JM Aluminum. meet the export standard. Plastic film and brown paper can be covered at customers’ need. What’s more, wooden case or wooden pallet is adopted to protect products from damage during the delivery. There are two kinds of packaging, which is eye to wall or eye to sky. Customers can choose either of them for their convenience. Generally speaking, there are 2 tons in one package, and loading 18-22 tons in 1×20′ container, and 20-24 tons in 1×40′ container.
As a China-based 3105 aluminum coil manufacturer and supplier, we at JM also produce aluminum foil, coated aluminum coil, aluminum plate, anodising aluminum sheet, embossed aluminum sheet, etc. For more detailed information, please continue browsing our website or feel free to contact us directly.
