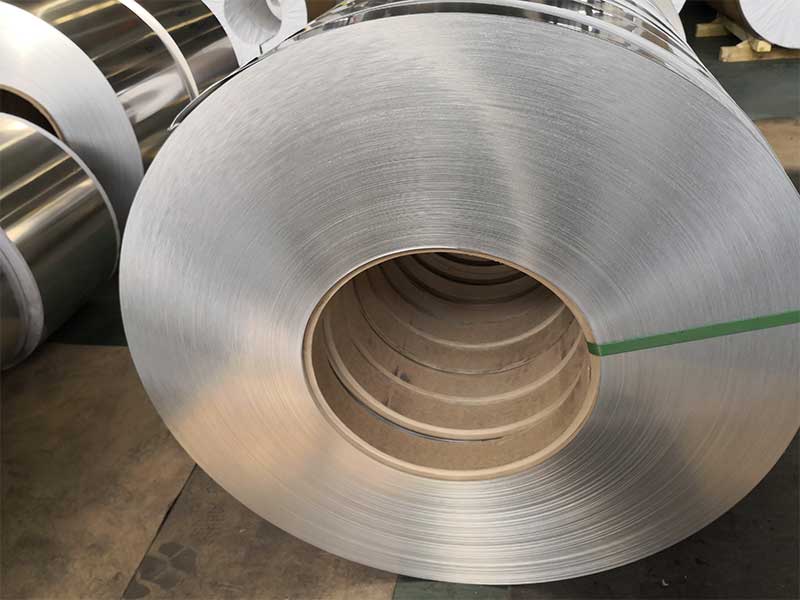

Aluminum coils

Aluminum Lithographic Coil, Sheet for Printing

Alloy1050, 1060

Width500-1600mm

Thickness0.14-0.27mm

Port of Loadingqingdao

CertificatedISO9001:2015


Technical Specifications

  1. Thickness:0.14-0.27mm

  2. Material (alloy):1050, 1060

  3. Temper:H18, H19

  4. Width(mm):500-1600;

Aluminium Lithographic Coil (also called PS panel) is a professional material that used for the printing application. It has high surface quality requirement. It is produced by surface degreasing solution, drying, photosensitive coating treatment and cutting to the specification that customer required.

This products are popular with national and overseas markets for its good quality and competitive price. such as southeast Asia, North America,Europe and so on. If you are interested in our products, welcome to contact with us

We professionally offering PS plate with below characteristics:
1. Photosensitive Coating
Consisted by imported photographic emulsion and resin, the coating layer of the plate have outstanding alkaline resistance, superior stability, high sensitive and increased adjusting flexibility as well as better resolving power.
2. Vacuum ventilating layer
With tiny ventilating grain layer on the surface, the vacuuming time during exposure can be greatly decreased, as well as preventing the proportion of tiny dots from exposuring to vague.
3. Water Receptive Layer
Excellent water reception capability speeds up the ink-water balance procedure and helps to reduce water absorption during printing process. Superior water retaining capability do effectively prevents non-image areas of the plate from scumming and avoids paper from distortion. Consequently, the printing quality improved
4. Multi Grain Layers
Multi grain layers polish up water receptive property of the non-image areas on the plate. It increases the ink /water adjusting flexibility, make sure the developing performance of the tiny dots. It also strengthens the dots’ adsoption power to the coating layer, which can consequently extend the run-length of the plate.
5. Anodic-Oxidized Layer
A durable and strong oxidized surface formed after the anodic oxidation process on the aluminium material, which can help to prolong the run-length. This layer can also resists the corrosive effect done by the correction fluid.

Inquiry

Please fill in the form Or send email to us : [email protected]
